KO Ball Check Valve

Full specifications

Application

Check valve is a back pressure valve deployed in the BHA to prevent high pressure from getting into the work string and then to the surface.

Design

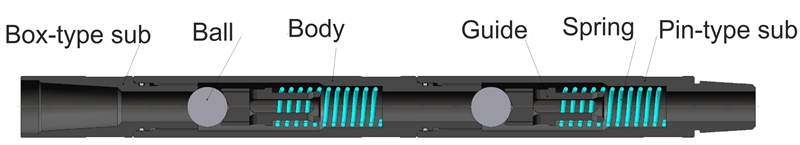

The valve consists of a valve body, two subs, hold-downs, balls, springs and O-rings. It is low-maintenance due to fewer components.
The valve is run on coiled tubing. If flow reverses, the valve closes and holds pressure from below the valve. The valve re-opens when back pressure from above the valve exceeds one from below.

Images and Dimensions

Technical data

To cart	Code	OD, in	Total length, ft	Minimal inside diameter of flushing port, in	Connecting thread	Weight, lb
	KO-38	1.5	1.5	0.75	1 "AMMT	5.38

You can specify the size of an item on the checkout page.
