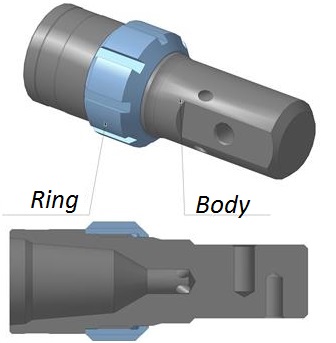

USU Universal Running Tool

Application

USU universal running tool is used for running-in and setting whipstock in cased hole.

For operation in 146 casing, use 121 mm OD ring;
For operation in 168 casing, use 141 mm OD ring.

The whipstock is attached to the running tool with shear bolt (supplied). The shear bolt is installed in the whipstock bushing and is screwed into running tool opening with Allen key. Openings are impact marked.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru.

Images and Dimensions
