KOP-SF Whipstock

Show video

Application

KOP-SF whipstock is used to deflect mill / reamer to initiate KOP (kick-off point) in cased hole and to drill a few feet of rathole to establish sidetrack.

Design

The whipstock is set on the bottom. It is run in conjunction with FSO window-starting mill and FA watermelon mill. That permits single trip sidetracking (tripping in, setting, window milling in casing).
After sidetracking, the whipstock can be retrieved with KL fishing hook or LK die collar.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru.

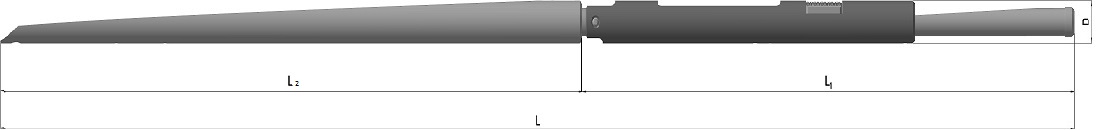

Images and Dimensions

Technical data

To cart	Code	Casing OD, in	Total length, ft	L1, ft	L2, ft	D, in	Weight, lb
	KOP-89SF	4-1/2	13.29	6.56	6.73	3.5	277.8
	KOP-112SF	5-1/2	14.53	7.87	6.66	4.41	463.0
	KOP-115SF	5-3/4	14.78	8.2	6.58	4.53	507.1
	KOP-135SF	6-5/8	17.52	10.17	7.35	5.32	749.6
	KOP-145SF	7.0	19.39	10.5	8.89	5.71	815.7
	KOP-155SF	7-5/8	20.08	9.09	10.99	6.1	1236.8
	KOP-190SF	9-5/8	19.95	10.83	9.68	7.48	1948.9

You can specify the size of an item on the checkout page.
