PG Hydraulic Junk Basket

Show video

Application

PG hydraulic junk basket with reverse circulation retrieves bit cones and bearings, broken slips, bits of wire line, various hand tools, slivers and debris from twisted-off drill strings, milling cuttings.

Design

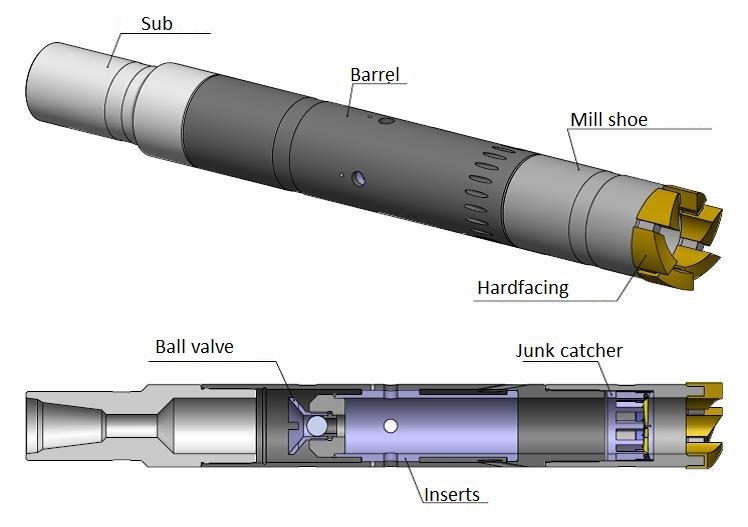

Hydraulic junk basket is connected to the string with the top sub. Apart from the top sub, the assembly includes body with a valve seat, a valve cup, a catcher and a mill shoe. The catcher is made of manganese bronze, furnished with alternating and long and short “fingers”, extended to the center of the tool.

The ball for activation of reverse circulation resides in special container in the top sub.

Hydraulic junk basket is available in right- and left-hand configurations, depending on thread direction, with several options of annular mill shoe, depending on abrasive-crushing welds-on – flat-bottom, wavy, geared, side wings.

Images and Dimensions

Technical data

To cart	Code	Body OD, in	Max D of caught pieces,in	Total length, ft	Connection, API	Max torque, lbf.ft
	PG-94	3-5/8	2-5/16	3.92	NC 26	2 213
	PG-112	4,0	2-1/2	3.83	2-7/8 Reg	2 213
	PG-119	4-1/2	2-15/16	3.83	2-7/8 Reg	2 213
	PG-130	5,0	2-5/16	4.0	NC 38	5 900
	PG-136	5-1/8	3-9/16	3.83	3-1/2 Reg	5 900
	PG-146	5-1/2	4,0	3.83	2-3/8 IF	5 900
	PG-150	5-3/4	4-1/4	3.83	3-1/2 Reg	5 900
	PG-196	7-1/4	4-3/4	4.83	NC 50	8 113
	PG-206	7-1/2	5-1/16	4.83	NC 50	10 330
	PG-257	9-3/4	6-5/8	6.17	NC 50	14 750
	PG-265	9-15/16	6-11/16	6.17	4-1/2 IF	14 750
	PG-286	10-3/4	7-1/2	6.17	NC 50	14 750
	PG-340	13,0	9-5/8	6.25	6-5/8 Reg	14 750

You can specify the size of an item on the checkout page.
