MSZ Tool Joint Taper Tap

Show video

Application

MSZ tool joint taper tap internally engages and retrieves a drill pipe from a well by tapping into its tool joint.

Design

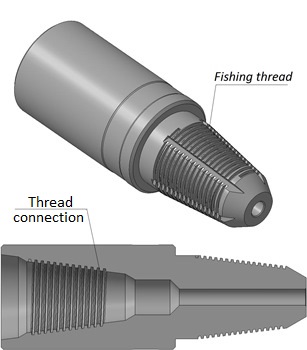

The taper tap is a tube section made of alloy steel. It has thread connection at the upper end, and external fishing thread, that is carburized and quenched, at the lower end. Lengthwise flutes across the fishing thread facilitate the tapping.
The taper tap has a watercourse for fluid circulation.
The taper tap is used for retrieval of drill pipes with damaged tool joint.

Images and Dimensions

Technical data

To cart	Code	Watercourse OD, in	Total length, ft	Fishing connection, API	Joint OD, in	Load capacity, lbf	Connection to fishing string, API	Weight, lb
	MSZ-66	9/16	0.85	2-3/8 Reg	3-3/16	224 800	2-3/8 Reg	14.55
	MSZ-73	9/16	0.92	NC 26	3-3/8	337 200	NC 26	16.98
	MSZ-76	9/16	0.92	2-7/8 Reg	3-3/4	337 200	2-7/8 Reg	20.5
	MSZ-86	13/16	0.92	NC 31	4-1/8	449 600	NC 31	23.15
	MSZ-88	1,0	0.92	3-1/2 Reg	4-1/4	449 600	3-1/2 Reg	25.13
	MSZ-102	1-3/16	1.18	3-1/2 IF	4-15/16	584 500	3-1/2 IF	55.12
	MSZ-133	1-1/2	1.25	NC 50	6-1/4	607 000	NC 50	74.52
	MSZ-147	2-3/8	1.34	5-1/2 FH	7-1/16	674 400	5-1/2 FH	87.52

You can specify the size of an item on the checkout page.
