MLG Non-Threading Releasable Taper Tap

Show video

Application

MLG non-threading releasable taper tap is designed to internally engage and retrieve tubular fish in a well.

Design

The taper tap is a steel tube of 0°30` at the lower end and tool joint thread at the upper end.
It has a watercourse for fluid circulation.
If required, the fish can be released from the taper tap with load 25-50% higher than one used for engagement. The taper angle of the taper tap ranges from 0º 30´ to 5º.
The non-threading releasable taper tap is made of 40HN steel grade and heat treated.
The taper tap is available in left- and right-hand configuration.

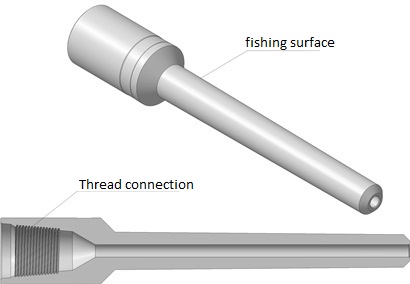

Images and Dimensions

Technical data

To cart	Code	Watercourse OD, in	Total length, ft	Joint OD, in	Load capacity, lbf	Pressure load, lbf, not more	Weight, lb
	MLG-18x29	3/16	2.43	1-13/16	6 744	8 768	6.28
	MLG-24x38	5/16	2.95	1-13/16	11 240	14 610	11.79
	MLG-30x44	3/8	2.95	1-13/16	13 490	17 540	15.83
	MLG-40x54	1/2	3.25	3-3/16	29 230	37 990	31.09
	MLG-46x60	1,0	3.15	3-3/16	33 720	43 840	31.09
	MLG-54x68	1,0	3.15	3-3/16	49 460	62 950	41.89
	MLG-62x76	1,0	3.15	3-3/16	53 950	67 440	53.35
	MLG-76x90	1-1/4	3.22	3-3/4	58 450	76 440	77.6
	MLG-84x98	1-1/2	3.22	4-1/4	58 450	76 440	91.05
	MLG-90x104	1-1/2	3.22	4-1/4	58 450	76 440	103.6
	MLG-96x110	2-5/16	3.8	5-1/2	58 450	76 440	170.2
	MLG-104x118	2-5/16	3.42	5-1/2	58 450	76 440	130.1
	MLG-108x126	2-5/16	4.27	5-1/2	58 450	76 440	183.0
	MLG-118x136	2-5/16	4.1	5-1/2	58 450	76 440	210.5
	MLG-126x144	3-3/4	4.27	6-1/8	58 450	76 440	254.6
	MLG-140x158	3-3/4	4.27	6-1/8	58 450	76 440	226.0
	MLG-148x166	3-3/4	4.27	6-1/8	58 450	76 440	262.4

You can specify the size of an item on the checkout page.
