MES Tubing Taper Tap

Application

MES tubing taper tap internally engages and retrieves tubing by tapping into its box during fishing operations in a wellbore.

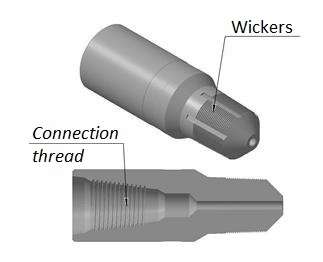

Design

MES tubing taper tap is a tube section made of steel alloy. It has thread connection at the upper end, and external fishing thread at the lower end. Lengthwise flutes across the fishing thread facilitate tapping.
The taper tap has a watercourse for fluid circulation.
It is available in left- and right-hand configuration.
MES taper tap screws into tubing box and is retrieved together with the fish.

Images and Dimensions

Technical data

To cart	Code	OD, in	Watercourse OD, in	Total length, ft	Connection, API	Fishing thread	Load capacity, lbf
	MES-48	2-9/16	1/2	0.59	NKT-48	NKT-48	80 930
	MES-60	3-3/14	9/16	0.89	2-7/8 Reg	NKT-60	123 600
	MES-73	3-3/14	1/2	0.92	2-7/8 Reg	NKT-73	168 600
	MES-89	4-1/4	13/16	0.92	3-1/2 Reg	NKT-89	224 800
	MES-102	4-1/4	5/8	0.92	3-1/2 Reg	NKT-102	269 800
	MES-114	4-3/4	19/16	0.92	3-1/2 IF	NKT-114	337 200
	MES-V33	2-9/16	1/4	0.76	NC 16	NKTV-33	47 210
	MES-V42	2-9/16	5/16	0.76	NC 16	NKTV-42	62 950
	MES-V48	2-9/16	1/2	0.76	NC 16	NKTV-48	80 930
	MES-V60	3-3/14	9/16	0.92	2-7/8 Reg	NKTV-60	123 600
	MES-V73	3-3/14	1/2	0.92	2-7/8 Reg	NKTV-73	168 600
	MES-V89	4-1/4	13/16	0.92	3-1/2 Reg	NKTV-89	224 800
	MES-V102	4-1/4	1-1/4	0.92	3-1/2 Reg	NKTV-102	269 800
	MES-V114	4-3/4	1-9/16	0.92	3-1/2 IF	NKTV-114	337 200

You can specify the size of an item on the checkout page.
